商品の詳細:
|
| 色温度(CCT): | 2700K-6500K | 入力電圧(V): | DC12V/24V |
|---|---|---|---|
| ランプ発光効率(lm/w): | 85 | 保証期間(年): | 2年 |
| 演色性(Ra): | 85 | 使用法: | 室内 室外 階段 壁 歩道 |

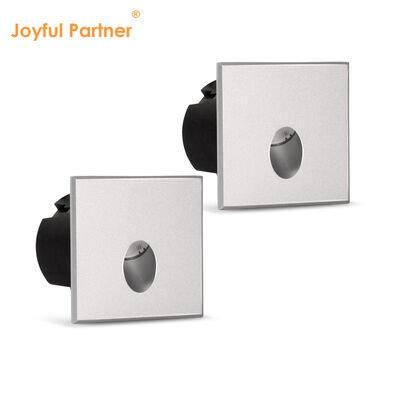

| ハイライト: | LED recessed wall light IP65,aluminum recessed LED light 80mm,3000K white recessed ceiling light |
||
| Item No. | Light Source | Lens Beam Angle | Power Consumption | Input Voltage | IK Rating |
|---|---|---|---|---|---|
| 1SS0101 | 1×1W | 60° | 1W | DC12V/DC24V | 10 |
| 1SS0101-H | 1×1W | 60° | 1.3W | AC100-240V | 10 |
| 1SS0102 | 1×3W | 60° | 3W | DC12V/DC24V | 10 |
| 1SS0102H | 1×3W | 60° | 3.3W | AC100-240V | 10 |
| Housing | ADC12# Die-casting outdoor powder coated aluminum |
| Lens | Optical lens, efficiency ≥85% |
| Cable Gland | M12 nickel coated copper |
| Gasket | Tooling shaped seal |
| LED | Epistar or CREE power LED, Ra>80 |
| PCB | Excellent heat conductivity aluminum, coefficient ≥2.0W/mK |
| Driver | Constant current output, single color LED=1-circuit output |
| Operating Temperature | -20℃ to 40℃ |
| Power Cable | H05RN-F 2×0.75mm² L=0.3m (low voltage) H05RN-F 3×0.75mm² L=0.3m (high voltage) |
