商品の詳細:
|
| 色温度(CCT): | 2700K-6500K | 入力電圧(V): | DC12V/24V |
|---|---|---|---|
| ランプ発光効率(lm/w): | 85 | 保証期間(年): | 2年 |
| 演色性(Ra): | 85 | 使用法: | 室内 室外 階段 壁 歩道 |
| ハイライト: | Outdoor recessed LED wall light,3W aluminum garden light,3000K recessed patio light |
||
| Item No. | Light Source | Lens Beam Angle | Consumption (Watt) | Input Voltage | IK Rate |
|---|---|---|---|---|---|
| 1SS0101 | 1*1W | 60° | 1 | DC12V/DC24V | 10 |
| 1SS0101-H | 1*1W | 60° | 1.3 | AC100-240V | 10 |
| 1SS0102 | 1*3W | 60° | 3 | DC12V/DC24V | 10 |
| 1SS0102H | 1*3W | 60° | 3.3 | AC100-240V | 10 |

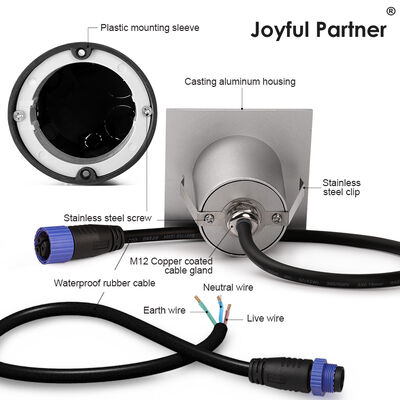

| Housing | Made of ADC12# Die-casting outdoor powder coated aluminum |
| Lens | Optical lens, efficiency ≥85% |
| Cable Gland | M12 nickel coated copper |
| Gasket | Tooling shaped seal |
| LED | Epistar or CREE power LED, Ra>80 |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity ≥2.0w/mk |
| Driver | Constant current output, single color LED=1-circuit output |
| Operating Temperature | -20℃ to 40℃ |
| Power Cable | H05RN-F2*0.75mm² L=0.3m (low voltage) H05RN-F3*0.75mm² L=0.3m (high voltage) |
Our outdoor LED step lights are designed with flexibility in mind, making them suitable for various applications. You have the freedom to decide how you want to position them, allowing you to achieve the desired design for your indoor and outdoor space.
JP Lighting 1*3w IP65 LED Recessed Wall Light for Canada stair, step, corner lighting in 2021. Widely used in parks, gardens, shopping malls, hotels, bridges, buildings and urban constructions in different countries and areas. Stable long-term and win-win cooperation with many branders and distributors in the field.
