商品の詳細:
|
| 色温度(cct): | 2700k-6500k | サポート調光器: | はい |
|---|---|---|---|
| 照明ソリューションサービス: | 照明および回路設計、プロジェクト設置 | 寿命 (時間): | 50000 |
| 製品の重量(kg): | 0.42 | 保証期間(年): | 2年 |
| 入力電圧(V): | 12v/24v DC/100-240v AC | 耐用年数(時間): | 50000 |
| ランプ本体の材質: | ステンレス製Steel+Aluminum | IP評価: | IP67,IP67 防水 |
| 応用: | 段差、階段、デッキ、湿気の多い環境 | アイテムの種類: | 導かれた地下ライト |
| ガラス: | 7mm テンプレートステップガラス | OEM&ODM: | 利用可能 |
| LED光源: | 1X1W/2W/3W | レンズ効率: | 85%以上 |
| 特徴: | エクストルードアルミニウム合金#6063 ハウシング | 輸送パッケージ: | 衝撃 防止 カートン 箱 |
| ハイライト: | waterproof LED underground light,stainless steel recessed light,frosted glass square light |
||
| Item No. | Light Source | Lens Beam Angle | Power Consumption | Input Voltage | IK Rating |
|---|---|---|---|---|---|
| 82511 82511S 82511AS | 1×1W LED | 8°/15°/30°/45°/60° | 1.2W | DC12V DC24V AC100-240V |
8 |
| 82512 82512S 82512AS | 1×3W LED | 8°/15°/30°/45°/60° | 3W | DC12V DC24V AC100-240V |
8 |
| 82516 82516S 82516AS | 1×3W RGB3in1 LED | 30°/45°/60° | 3.1W | DC12V DC24V |
8 |
| D82517 D82517S | 1×0.5W LED | 120° | 0.5W | DC12V DC24V AC100-240V |
8 |

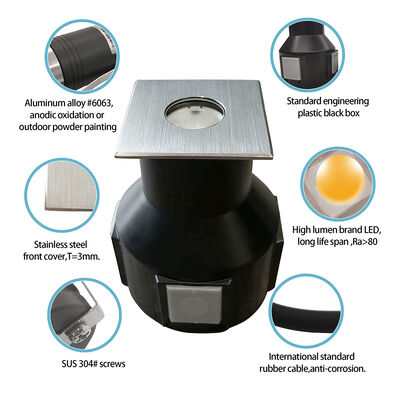

| Housing | Aluminum housing with anodic oxidation or outdoor powder coating |
| Front Cover | 304# or 316# Stainless Steel |
| Lens | Optical lens with efficiency ≥85% |
| Glass | Tempered glass, T=7mm |
| Gasket | Molded silicone double seal |
| Operating Temperature | -20℃ to 40℃ |
| Power Cable |
H05RN-F 2×0.75mm² L=0.5m (low voltage) H05RN-F 3×0.75mm² L=0.5m (single color/high voltage) H05RN-F 4×0.75mm² L=0.5m (RGB) |
| Mounting Sleeve | ABS material |
| Optional Accessory | Honeycomb |
